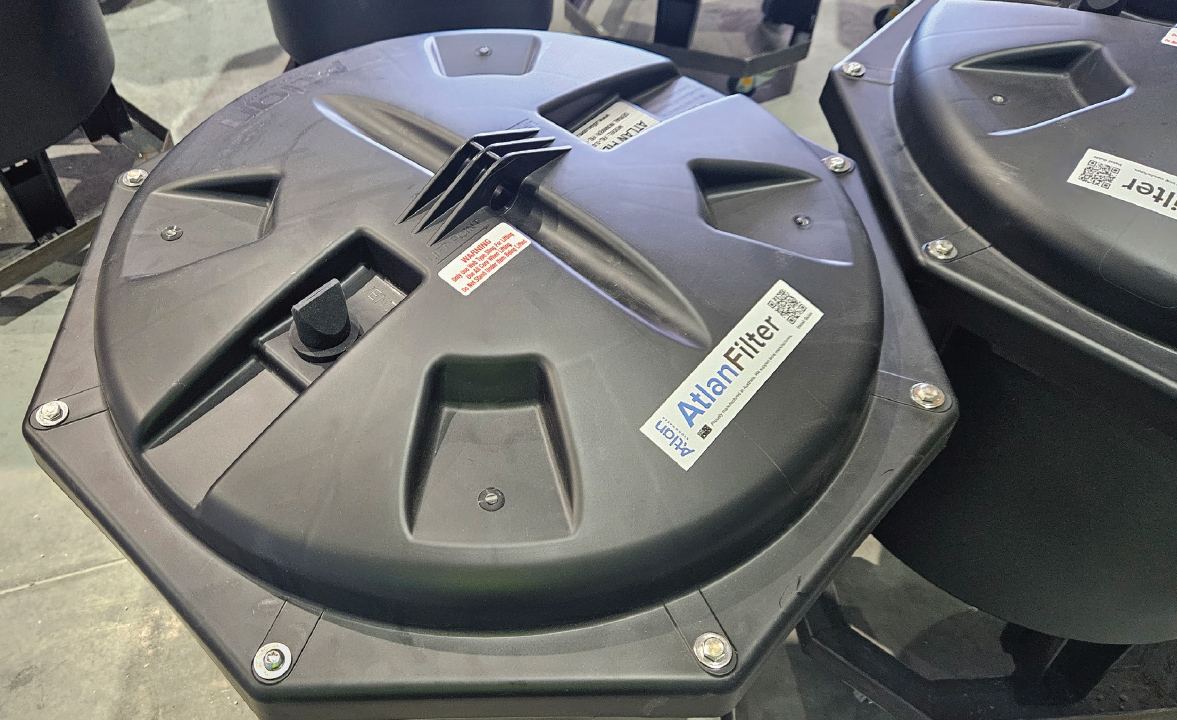

AtlanFilter
TERTIARY STORMWATER FILTRATION CARTRIDGES

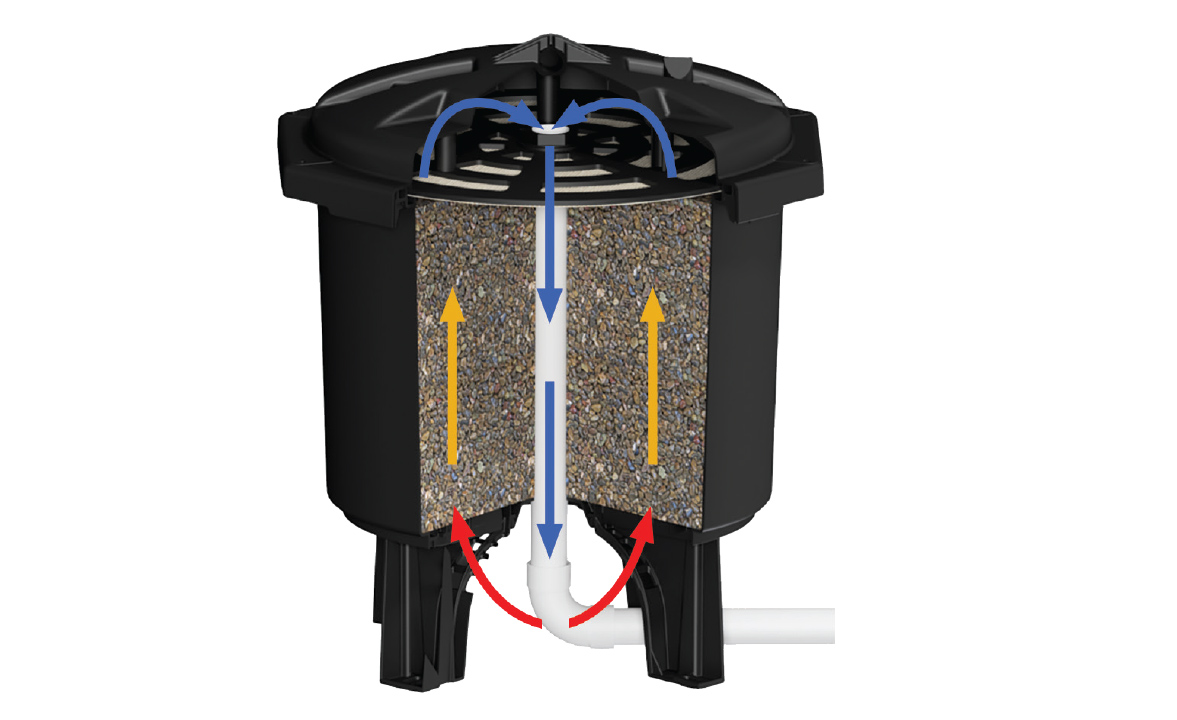

Our cartridge filter system, AtlanFilter, is a tertiary stormwater filtration system that incorporates an upflow treatment process which maximises surface treatment area. Flow through the filter cartridges utilises a self-regulating siphon which results in a low maintenance and high performance treatment of stormwater runoff. The automatic backwash at the end of each storm event further lengthens the lifespan of the stormwater treatment filter.
Hydraulic pressure forces water through the filter media — causing a constant velocity throughout the filter area realising a consistent media contact time and therefore treatment. Upon completion of a stormwater treatment cycle, the filter backwashes and effectively dislodges particulates from the filtration layers.
Features & Benefits
Advanced Filtration Technology
Utilises up-flow filtration to effectively capture pollutants such as sediment, hydrocarbons, heavy metals, phosphorus, nitrogen, and total suspended solids (TSS).
Compact Design
Compact footprint with fully customizable configurations, accommodating anywhere from 1 to an unlimited number of filter cartridges, making it ideal for constrained sites with minimal installation space.
High Efficiency and Low Hydraulic Head
Delivers excellent pollutant removal with just 250mm of hydraulic head, making it suitable for flat or low-gradient developments.
Durable Construction
AtlanFilter's design has no moving parts which increases reliability, longevity and durability.
Versatile Applications

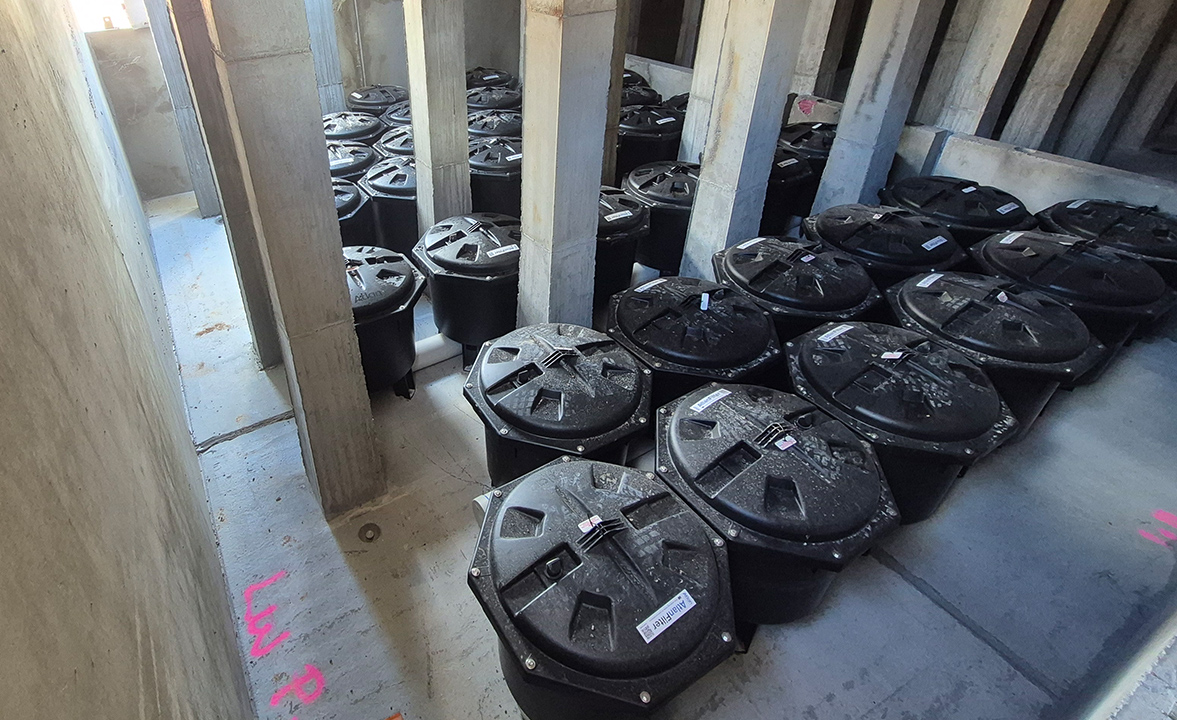

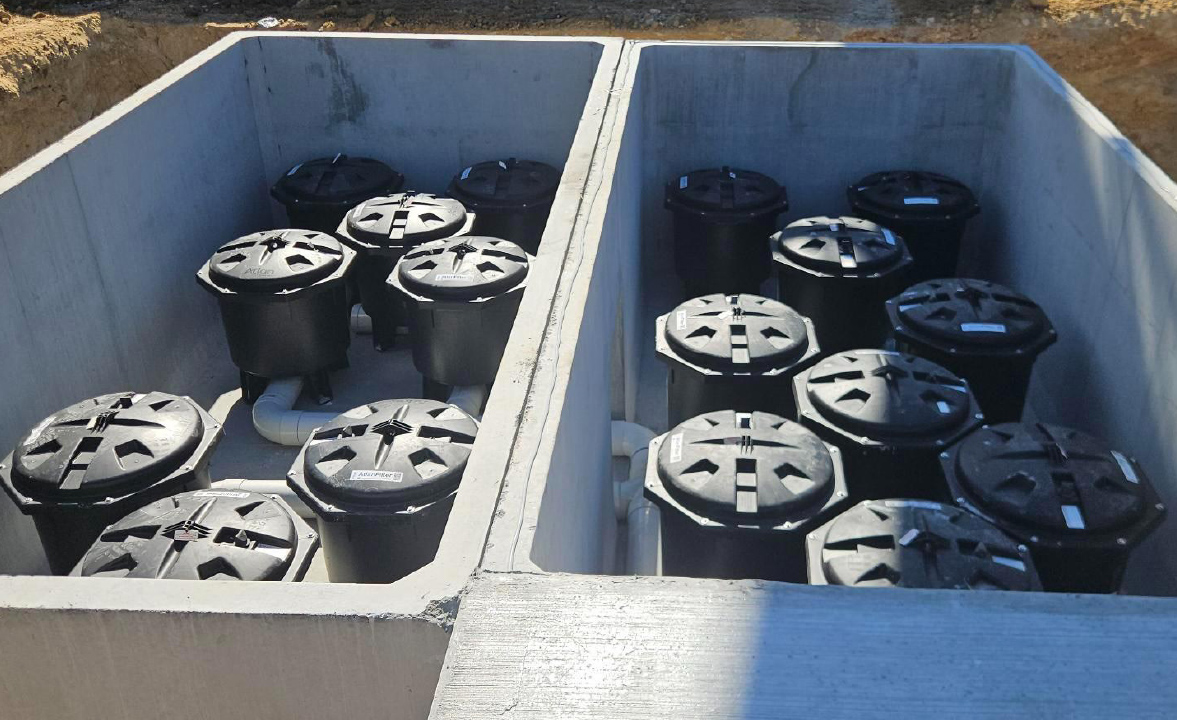

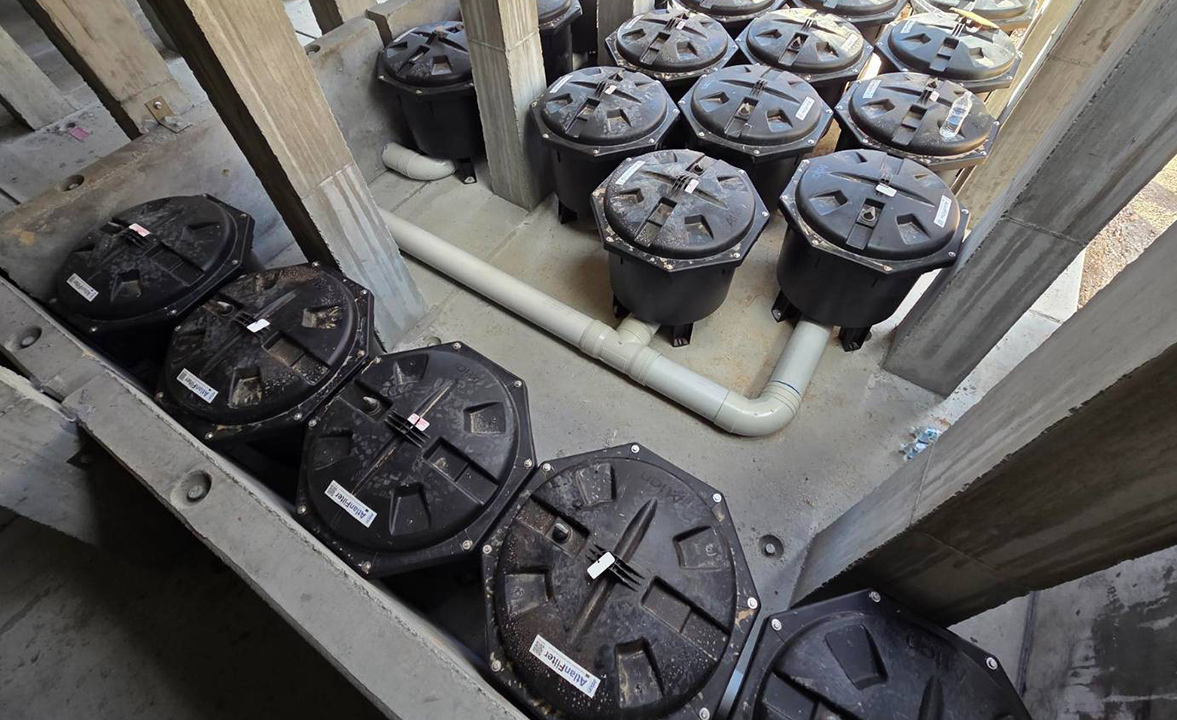

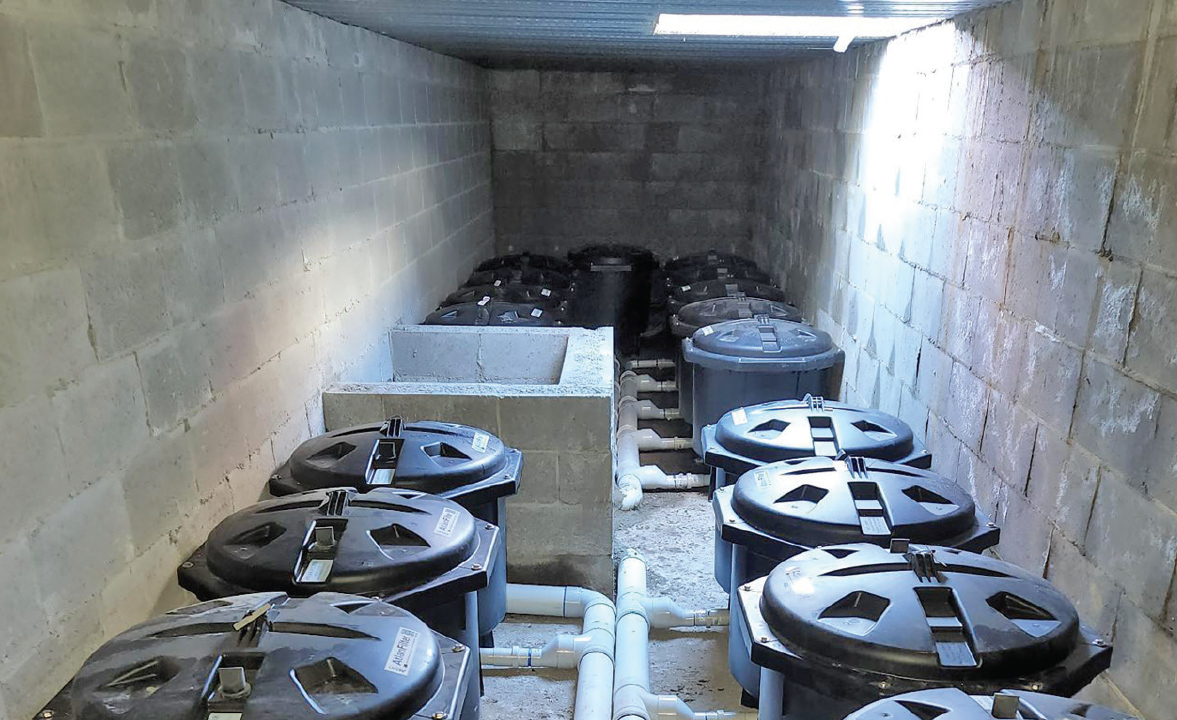

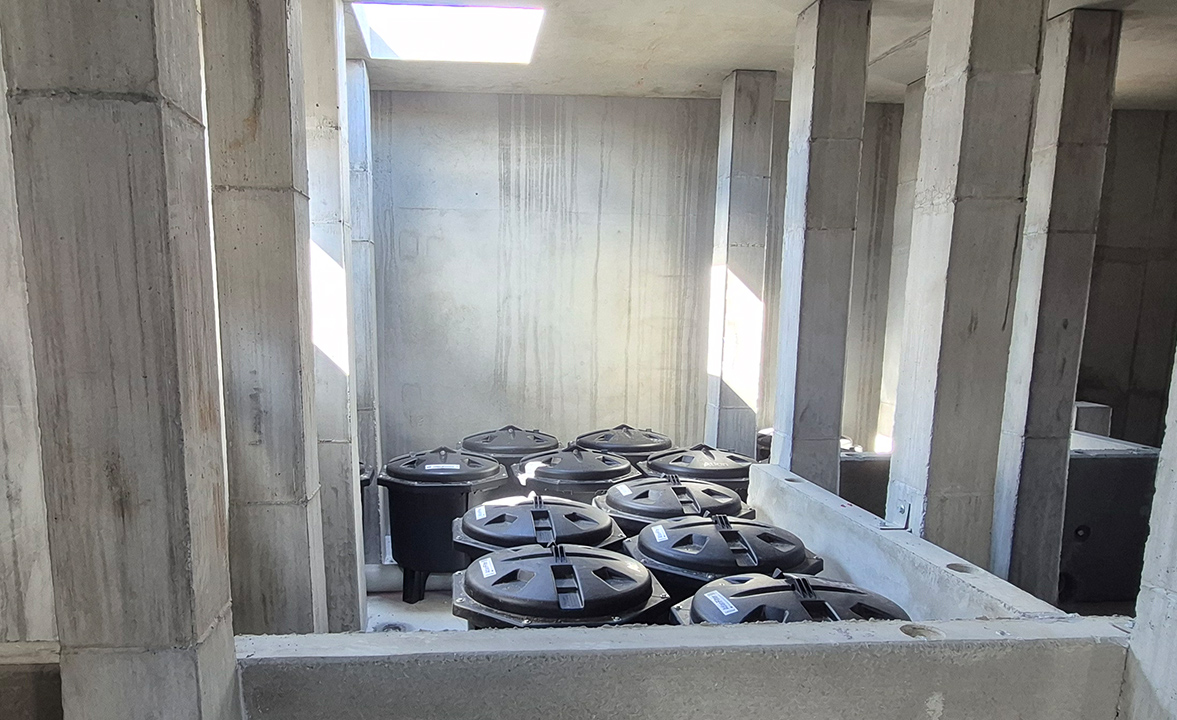

Suitable for manholes, OSD tanks, vaults, and both trafficable and non-trafficable zones, providing adaptable stormwater solutions.
Easy Installation and Maintenance
Lightweight, no-crane installation with straightforward maintenance and easy cartridge access for pollutant removal.
SQIDEP Test Treatment Efficiencies*
| POLLUTANT | EFFICIENCY |
|---|---|
| Total Suspended Solids (TSS) | 85% |
| Total Phosphorus (TP) | 74% |
| Total Nitrogen (TN) | 59% |
*Contact us to confirm approval performance for the project LGA.
Flexible Flow Rate Capability

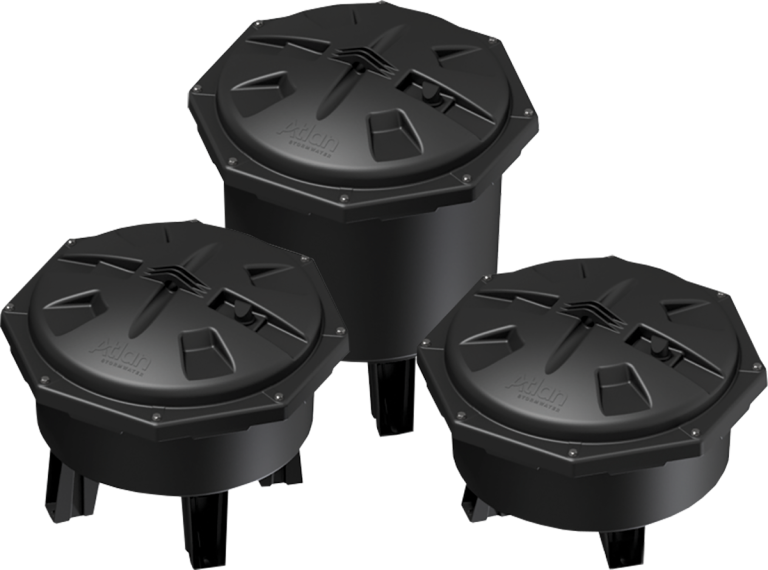

Offers 3 LPS for full height and 1.5 LPS for half height filters, with SQIDEP-verified performance.
Sustainable Performance
Inorganic media prevents nutrient leaching, ensuring efficient and reliable treatment outcomes.
Applications
- Car parks and Shopping Centres
- Council Depots
- Industrial Estates
- Heavy Vehicle Maintenance
- Airport Aprons & Tarmacs
- Transport Depots & Loading Bays
- Tunnels
- Highways & Transport Corridors
- Recycling Yards
