Flowceptor®
STORMWATER QUALITY IMPROVEMENT DEVICE

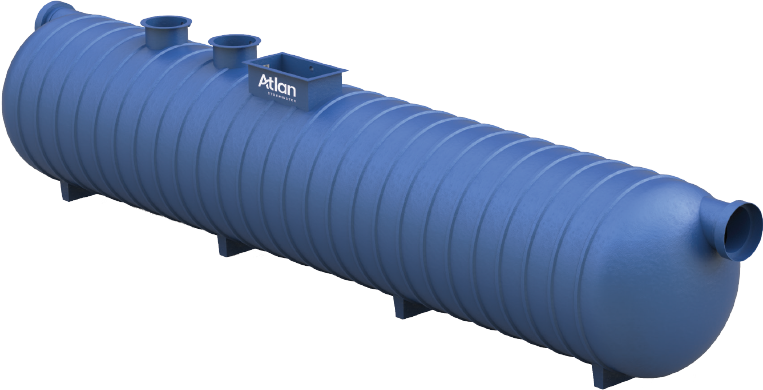

Flowceptor® is a horizontally configured two-chamber Stormwater Quality Improvement Device (SQID), equipped with a gravity enhancing coalescer unit. For those with medium to low-risk applications, the Flowceptor Class 2 model (with no coalescer unit) is also available.
The advanced design facilitates a retention period that provides quiescent conditions within the secondary chamber, efficiently promoting the separation of total suspended solids (TSS), light liquids and pollutants. Atlan treatment devices can accommodate a complete range of flow rates with corresponding pipe size and types.
Features & Benefits
Efficient Stormwater Management
Designed to capture and remove gross pollutants, sediment, and oils from stormwater runoff.
High Rate Separator
Efficiently separates total suspended solids (TSS), light liquids, and pollutants, with advanced treatment for oily water and hydrocarbon runoff.
Coalescer Unit
Equipped with a gravity-enhancing coalescer for improved separation of light liquids and contaminants.
Low Maintenance
Designed for easy maintenance with high efficiency in capturing pollutants, reducing long-term operational costs.
Medium Risk Applications
Ideal for medium-risk commercial and industrial environments where oily water and hydrocarbons are a concern.
Pollutant Capture
Effectively captures hydrocarbons, oils, heavy metals, and gross pollutants in stormwater systems.
Flexible Flow Management
Accommodates a wide range of flow rates and pipe sizes, ensuring versatility for various stormwater systems. Optimises flow conditions to enhance pollutant separation and retention for high-performance filtration.
| POLLUTANT | EFFICIENCY |
|---|---|
| Gross Pollutants (GP) | 100% |
| Total Suspended Solids (TSS) | 87% |
| Total Phosphorus (TP) | 11% |
| Total Nitrogen (TN) | 23% |
*Contact us to confirm approval performance for the project LGA.
Customisable
Available in multiple sizes and configurations to suit various catchments, flow rates and treatment requirements.Inline and offline options offer flexibility for new installations and retrofitting existing systems.Suitable for a range of installations, including industrial, commercial, and transportation hubs.
Flood Protection
The offline configuration bypasses excess flows to prevent flooding and transport of captured pollutants.
Manufactured in New Zealand
Locally fabricated in our National FRP production facilities to meet ISO9001 Quality Standards.
Applications
- Car Parks
- Shopping Centres
- Council Depots
- Industrial Estates
- Heavy Vehicle Maintenance
- Airport Aprons & Tarmacs
- Loading Bays & Transport Depots
- Tunnels
- Highway & Transport Corridors
- Recycling Yards
