FlowGuard

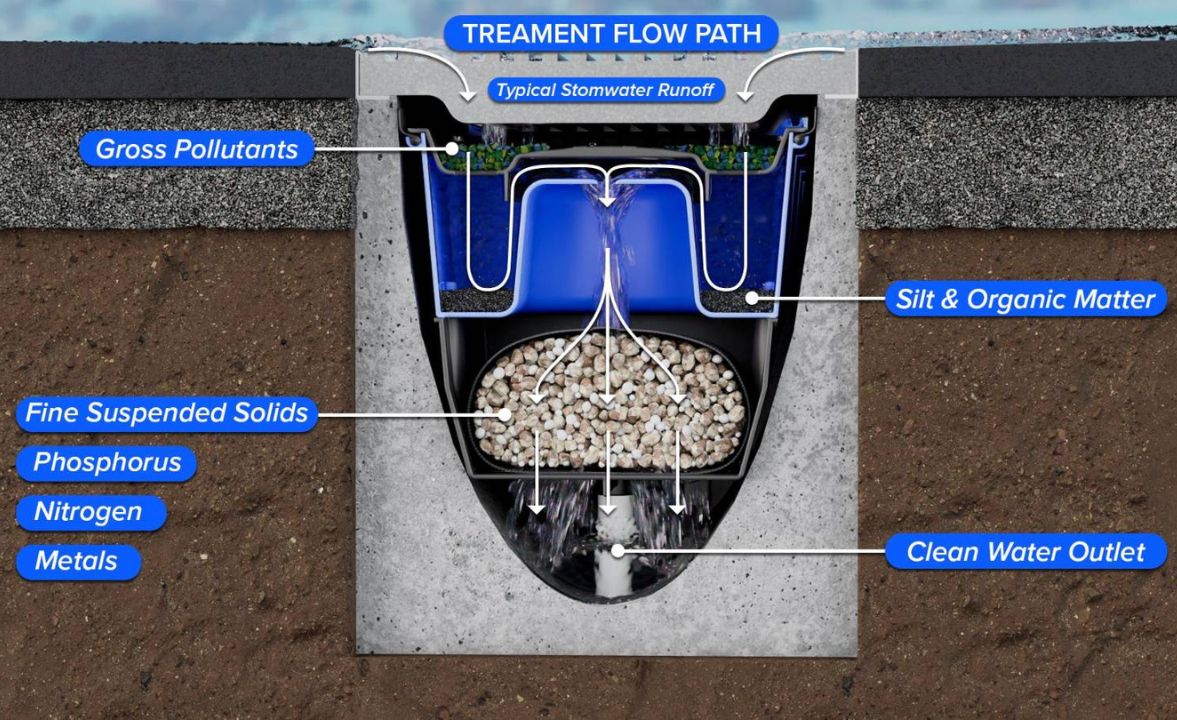

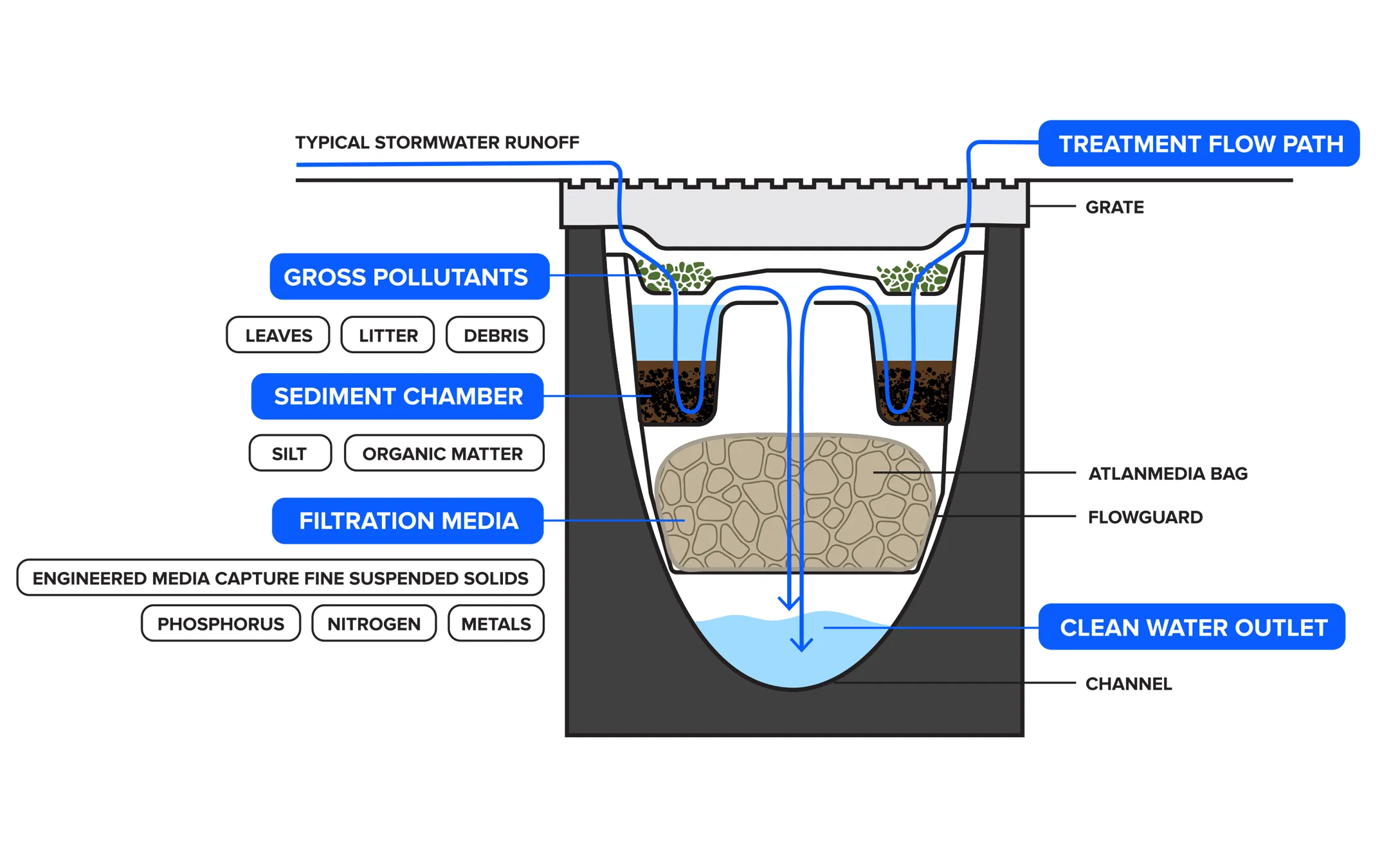

The FlowGuard offers a decentralised and absolutely new path for stormwater treatment. Decentralised stormwater treatment is an important measure within the implementation of the WSUD as it can be deployed precisely and cost effectively. The modular design means that the stormwater is treated in two steps:
- Solids and particulates are settled in the first step
- Dissolved contaminants are then absorbed in the filter matrix
Features & Benefits
Effective Pollutant Capture
Filters hydrocarbons, heavy metals, total phosphorus (TP), and total nitrogen (TN), ensuring safe disposal during routine maintenance.

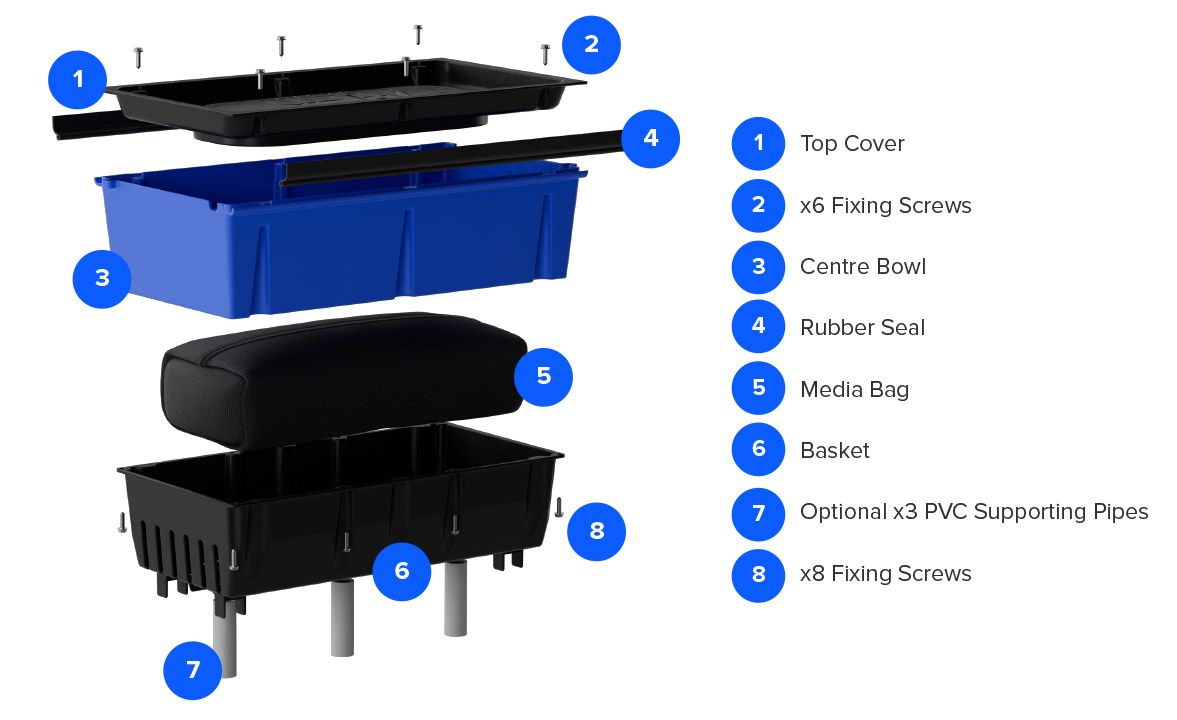

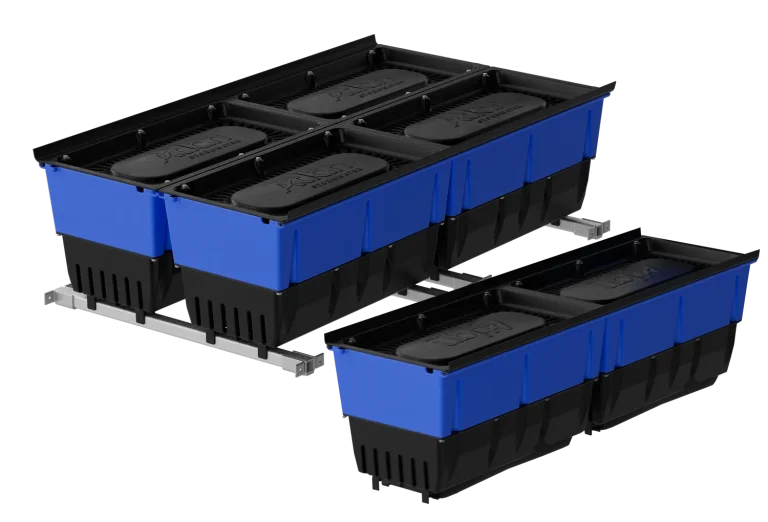

Modular Design
Treats stormwater in two steps—settling solids/particulates and absorbing dissolved contaminants in the filter matrix.
Advanced Flow Control
Regulates stormwater discharge rates to prevent downstream flooding and manage peak flows.

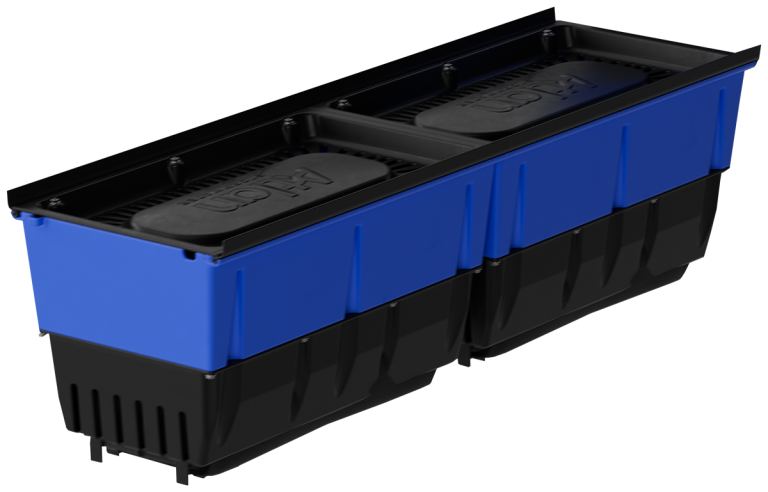

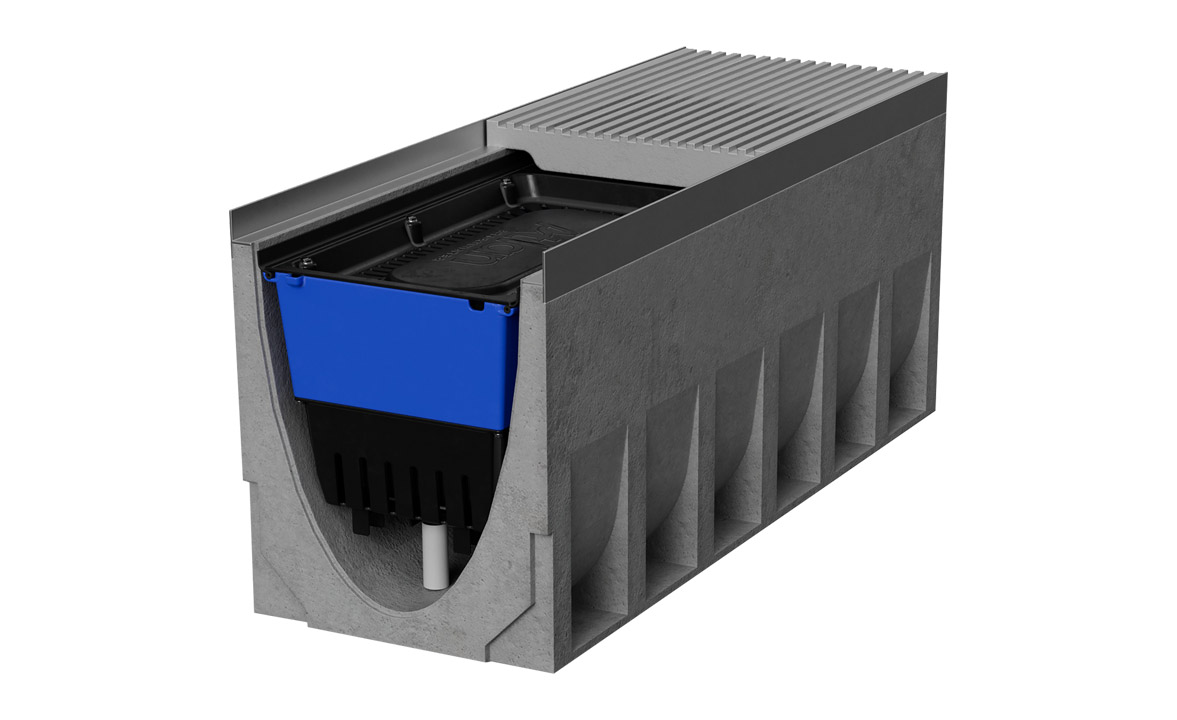

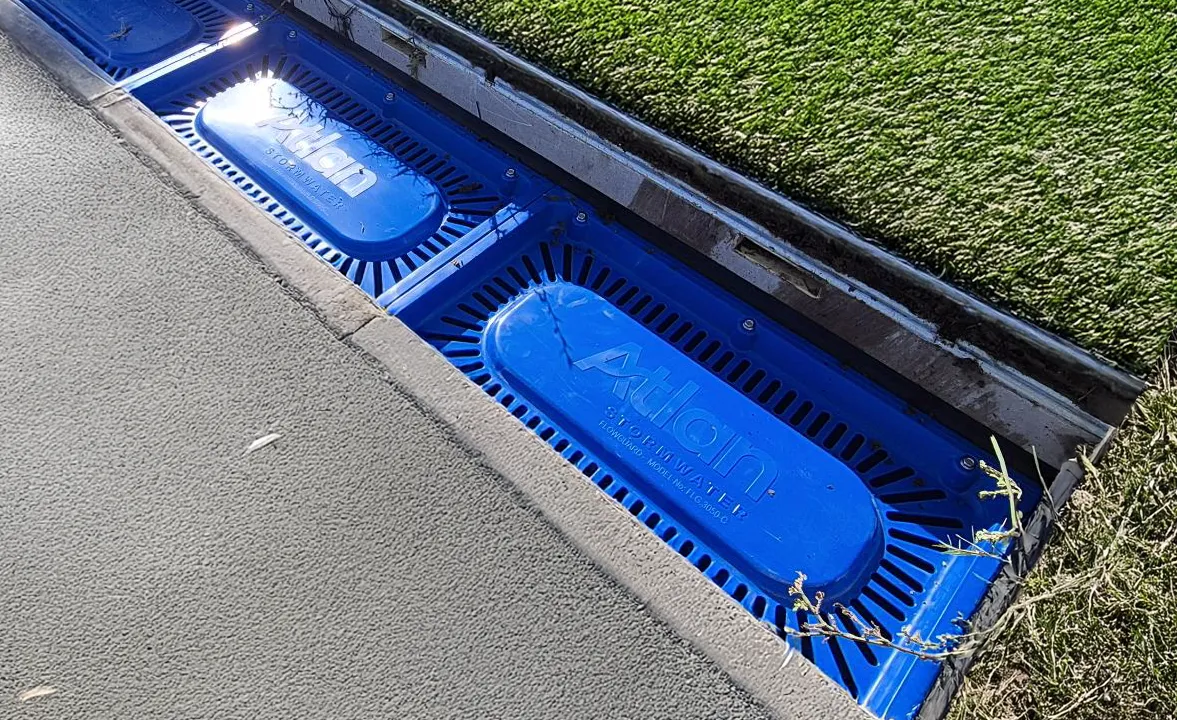

Compact Channel Insert
Fits into 300mm wide grated drains with a minimum depth of 450mm, ideal for at-source stormwater treatment.
Precision Design
Includes adjustable or fixed flow control options to suit specific site requirements.
Durable Materials
Constructed with high-quality, corrosion-resistant materials for long-lasting performance in harsh environments.
Ease of Installation
Prefabricated units allow for quick and cost-effective deployment on-site, reducing downtime and operational costs.
SQIDEP Test Treatment Efficiencies*
| POLLUTANT | EFFICIENCY |
|---|---|
| Gross Pollutants (GP) | 100% |
| Total Suspended Solids (TSS) | 88% |
| Total Phosphorus (TP) | 69% |
| Total Nitrogen (TN) | 67% |
*Contact us to confirm approval performance for the project LGA.
Please note that we only supply the filter bag and poly insert. Concrete or steel lined channels are NOT included.
Low Maintenance
Designed for easy access and cleaning, reducing maintenance time and costs.
Versatile Applications
Suitable for high-traffic areas, industrial sites, car parks, roads, and metal roofs to treat stormwater at site level.
Applications
- Commercial
- Industrial
- Residential
